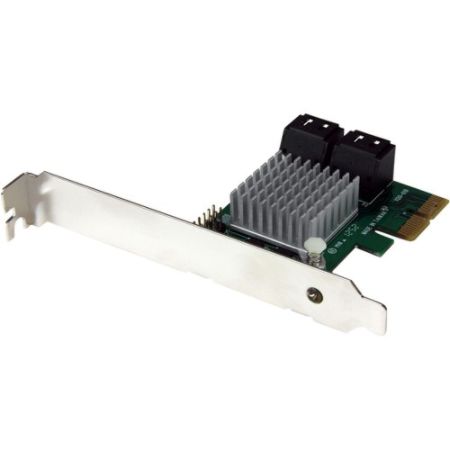

StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering Item # 922439

 |
StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering
$ 83 .99 / each $83.99
In Stock
Free delivery
Estimated delivery 3-7 business days

    Description

    Add 4 Internal SATA III (6Gbps) ports to a computer through a PCI Express x2 slot. The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs).Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.)The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support.

    Back To Top

    Product Details

    Item # 922439
    Manufacturer # RB3509
    RAID Levels JBOD; 1; 0; 1+0
    height 0.8 in
    Additional Information OS Compatibility:Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64); Windows Server® 2012, 2008 R2, 2003; Mac OS® 10.6 and later (tested up to 10.10); Linux
    thickness 0.8"
    quantity 1
    Total Number of SATA Ports 4
    width 4.7 in
    package contents 4 Port PCI Express SATA III 6Gbps RAID Controller Card with Heatsink; 1 x Low Profile Bracket; 1 x Driver CD; 1 x Instruction Manual
    depth 2.8 in
    Product Name 4 Port PCI Express SATA III 6Gbps RAID Controller Card with Heatsink
    manufacturer StarTech.com
    Host Interface PCI Express 2.0 x2
    Compatibility OS Compatibility: Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64); Windows Server® 2012, 2008 R2, 2003; Mac OS® 10.6 and later (tested up to 10.10); Linux
    weight 1.76 oz
    RAID Supported Yes
    brand name StarTech
    controller type Serial ATA/600
    Card Height Low-profile
    Number of SATA Ports (Internal) 4
    Platform Supported PC; Mac; Linux
    form factor Plug-in Card
    warranty length 2-year limited
